COMPONENTS

Our component list

Agitators

NEW – Paddlewheel Tsunami

(applies only to existing plants)

Facts

  • 22 kW drive power

  • Low energy consumption due to operation by frequency converter

  • Paddle diameter 4.48 meters

  • Available with 8 paddles

  • Easy to maintain, as the drive unit is outside the tank

  • Suitable for final storage

  • 3-stage reliable planetary gear

  • With float for changing fill levels

  • for container depths from 5.00 – 10.00 m

  • for tank diameters of up to 50.00 m

NEW – Paddle agitator – Rührgiagl

Facts

  • 18.5 kW drive power

  • Low energy consumption due to operation by frequency converter

  • Paddle diameter 2.40 meters

  • approx. 31,500 m³/h circulation capacity

  • Easy to maintain, as the drive unit is outside the tank

  • Suitable for fermenters and secondary fermenters

  • 3-stage reliable planetary gear

  • Optionally available with central lubrication system

Tsunami – Transversal paddle mixer

(applies only to existing plants)

Facts

  • 18.5 or 22kW drive power
  • Low energy consumption due to operation by frequency converter
  • 43,422 m³/h circulation capacity with simultaneous low speed of 9 rpm
  • Paddle diameter 5.20 meters
  • Available with 2 or 4 paddles
  • Easy to maintain, as the drive unit is outside the tank
  • Suitable for digesters, post-digesters and final storage facilities
  • 3-stage reliable planetary gear
  • Optionally with float for changing filling levels

Steinauer – standing paddle mixer

(applies only to existing plants)

Facts

  • 18.5 or 22 kW drive power
  • Low energy consumption due to operation by frequency converter
  • 43,900 m³/h Circulation capacity
  • Stepless adjustment of the stirring power
  • Paddle diameter 4.20 meters
  • Available with 4 to 6 paddles
  • Suitable for digesters, post-digesters and final storage facilities
  • 3-stage reliable planetary gear
  • Easy to maintain, as the drive unit is outside the tank

Mississippi – paddle mixer

(applies only to existing plants)

Facts

  • 18.5 kW drive power
  • Low energy consumption due to operation by frequency converter
  • 26,675 m³/h Circulation capacity
  • Paddle diameter 4.20 meters
  • Suitable for digester and post digester
  • 3-stage reliable planetary gear
  • Easy to maintain, as the drive unit is outside the tank
  • Optionally available with central lubrication system

Contact

Do you have questions about biogas and wood gasification plants, components, or our services? We’re happy to provide information and assistance.

Contact now

Insertion technique

The right insertion technology for every requirement

Fuada-Sepp

(applies only to existing plants)

Facts

  • As a simple contributor with 10 m³, 20 m³, 24 m³, 34 m³, 40 m³ or 50 m³
  • As a double feeder with 68 m³, 80 m³ or 100 m³
  • 7.5 – 11 kW drive power per screw
  • As ceiling or side entry or with high conveying technology
  • Solid screws and screw tubes (opt. completely made of stainless steel)
  • Stainless steel tray
  • Digital large display
  • Visualized control panel
  • Reliable drive units with planetary gearheads

Hochreiter Walking Floor

(applies only to existing plants)

Facts

  • Volume from 56 m³, 82 m³ up to 108 m³
  • 4 to 5.5 kW hydraulic power unit
  • 2.2 kW per milling drum (optionally with central lubrication)
  • Optionally available with additional milling drums
  • Side entry or high conveyance technology
  • 12 hydraulically controlled stainless steel push bars
  • Visualized control, large digital display with dosing diary
  • No corrosion problems, because lined with PE-tub & screen printing plates
  • Economic operation due to low power consumption

Technical data

  • Volume of 50 m³, 70 m³, 90 m³ or 100 m³

  • 5.5 kW hydraulic power unit
  • 2.2 kW per scarifying roller
  • Optionally with central lubrication

Central pumping station

Facts

  • 18.5, 22 and 30 kW drive power
  • Stainless steel body with 5 inlets in DN300
  • Integrated manifold from 5 to 11 outlets
  • High degree of prefabrication due to frame construction with pneumatic sliders
  • High flow rate due to a robust centrifugal pump
  • With automatic central lubrication system
  • Optionally with flow measurement
(applies only to existing plants)

Gas storage

Facts

  • Large gas storage for flexible plant operation

  • A support fan keeps the outer weather protection membrane stable and makes it unaffected by wind

  • An internal, invisible foil serves as a buffer for the biogas and is expanded or collapses due to the gas pressure.

  • Level monitoring on the smartphone

  • Gas storage offers biogas large space for cooling, condensation and sulfur reduction

(applies only to existing plants)

Available as:

  • Container cover

  • Thermally insulated version

  • Square, round, quadrate on a foundation or concrete upstand

  • Gas bag above the CHP room

Container heating

Container heating

  • Fermenter heating completely welded
  • Each ring with forward and return
  • Suitable for any container diameter
  • 1-6 rings selectable
  • Complete with mounting

Facts

  • The stainless steel rings are completely in the substrate

  • Diffusion-tight

  • No siltation in the water system
  • Better heat transfer compared to PE hoses

  • Thermophilic driving mode possible

  • Low maintenance

Gas purification / gas dewatering

by means of activated carbon Gas treatment / cooling

Facts

  • Purified and dewatered biogas
  • Reduction of deposits in the combustion chamber due to sulfur or siloxanes
  • Avoidance of damage due to corrosion and pitting in the exhaust gas heat exchanger

  • Increased CHP availability and longer CHP service life

  • No consequential damage due to oxicate contamination

  • Extension of the Oxikat service life

  • Reliable gas cooling by means of an efficient, temperature-controlled air conditioning unit

  • Integrated reheating of the biogas for maximum purification performance

  • Optimum gas purification through distribution to several tanks connected in parallel
  • Uniform raw gas distribution resulting in high loading of the activated carbon filter
  • Modular system, expandable, absolutely maintenance-friendly, no heavy lifting equipment required, up to four individual filter bags per container can be changed individually
  • Several possibilities for sulfur measurement on the individual tanks
  • Weather-independent installation outdoors or in a hall possible

  • On-site replacement of the activated carbon filter and new supply is guaranteed!

Gas flare

Supplied ready for operation and can be used immediately

Option packages

  • Control cabinet stainless steel

  • Fully automatic operation possible

  • 2-stage gas valve

  • Control cabinet heater with thermostat

  • Switch cabinet loose for remote mounting

  • Gas shut-off valve DVGW tested

  • Anchoring set, 16 pcs. Stainless steel impact anchor

  • Antifreeze package, enclosure and heating of the gas fittings

  • Windshield package, 4 stainless steel windshields
  • Switch mains emergency power with 16A CE socket
  • MTU-V 800 flame tube extension by 1.5m

  • Concealed combustion

Filling station for slurry trailers and road tankers

Filling station for slurry trailers and road tankers

  • Variable projection 3 – 6 m

  • Height adjustable via hydraulic cylinder

  • DN 150/200
  • Swivel joint

Viewing device

Bulls-Eye

  • DN300 / DN400
  • With flushing system and stopcock
  • Windscreen wiper

  • Reinforced design for installation under maximum level

Viewing window oblique

  • DN400 / DN500
  • With flushing system and stopcock
  • Round or square
  • Windscreen wiper
  • Stainless steel

Fermenter lid with burst protection

  • For recesses of 0.80 x 0.80 m, 1.20 x 1.20 m, 1.20 x 1.80 m and 1.70 x 2.70 m

  • Bursting sight glass 0,60 x 0,60 m

  • Special silicone seal

  • Stainless steel

System piping

Piping

  • Slurry capacities, free level and pressure line

  • Stainless steel and HDPE gas piping

  • District heating

  • Distribution beam

Sand scraper

With discharge screw

Facts

  • Economical 1.35 kW drive power
  • Max. 16 meter tank diameter
  • Single or double rake arm
  • Suitable for sinking materials such as: sand, stones, etc.
  • Reliable planetary gear
  • Sand discharge screw with massive screw windings

  • Up to 95 % reduction in heavy material deposition

  • Economical operation due to low rotation (1 rpm)

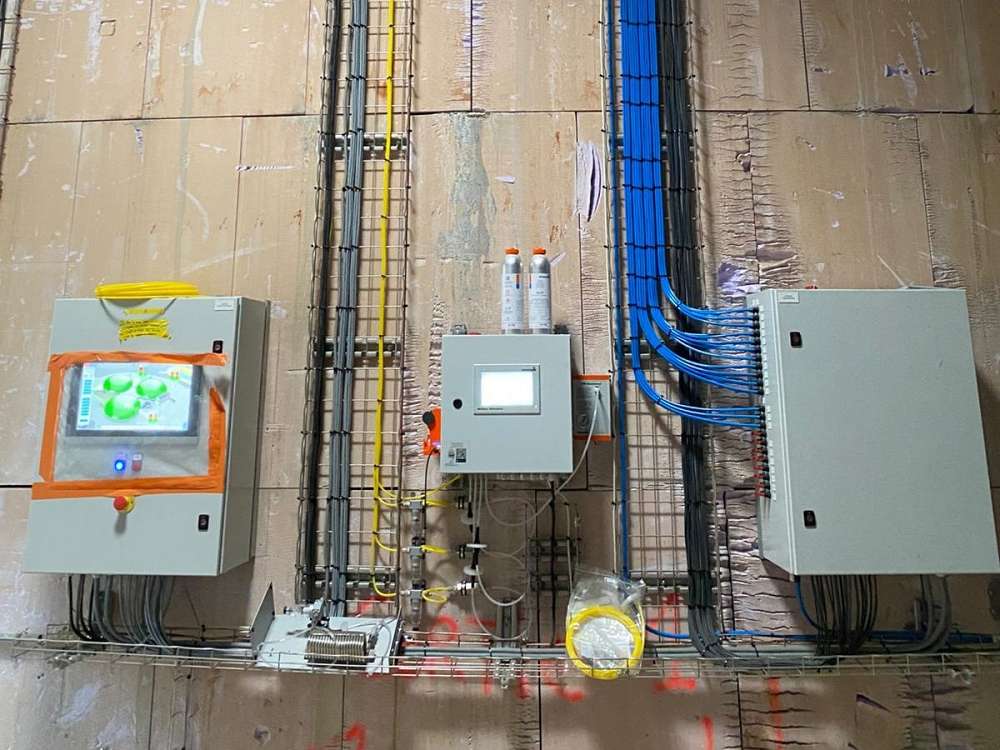

System control

MasterVIZOR

The in-house programmed plant control system is individually adapted to the plant on site. The intelligent modular system makes it self-explanatory and easy to operate for the user. If unexpected malfunctions occur, the integrated diagnostic system contacts the plant operator or our service team by e-mail, SMS or phone call. The fault is immediately listed in detail in the clear diagnostic display, so that the fault can be rectified quickly and in a targeted manner.

Overflows

between the digesters

Facts

  • Version in DN300 / DN400

  • Communicating system

  • Compressed air injection

  • Optionally with flushing system

  • Optionally with handwheel or pneumatic slide valve
  • No additional pumping required
  • High energy saving

  • Low-maintenance operation

Separator

Facts

  • Simplification and optimization of processes (e.g. for BGAs, industry)
  • Closing of loops (e.g. solid phase as bedding material)
  • Reduction of the storage space by up to 25%.
  • Targeted use of nutrients: separation into solid/liquid phase
  • Production of commercial products: separating – drying – pelletizing
